Front Idler for Sumitomo Excavator Sh200 Undercarriage Spare Parts
Before assembling rollers,smooth the sharp part of sapre parts and do the deburring,clean the inner holes of the roller body and oil seal etc..
Product Introduction
The advanced technology and equipment and mature management mode we adopt can fully guarantee the high standard and high quality of our Track Roller Mini, Roller Track Digger, Excavator Track Link Guard. Our company fully introduces advanced production technology at home and abroad, combined with our strong research and development strength, so that the quality and performance of our products reach the international first-class level. We will increase the development of new products, continue to explore new areas, as always adhere to the 'pursuit of excellence, sincere to forever' principle, dedicated to the majority of customers.
Front Idler SH200 SH280
Production detail:
Model | SH200 SH280 |
Machine weight range | 1.5t to 95.3t |
Material | Front idler roller body ZG50MN or 35SIMN |
Brackets nodular steel or allay steeel | |
Manufacturing method | casing ,heat treatment,lathing,drilling,painting |
Color | Yellow ,black etc.. |
Packing | Standard seaworthy wooden pallets fastened by strong strips |
Delivery time | Arount 30 days |
Port of shipment | Xiamen |
guarantee time | 6 months |
OEM and ODM | Acceptable |
Payment term | TT |
LC at sight | |
Features | 1.Brackets Branckets of front idler group are made by ductile iron. It shows exceptional resisitance to shock. 2. Bimetal bushing Bimetal bushing of our front idler is based on steel plate which special alloy is sintered on it. It shows high loading ability and high ability of fatigue resistance. 3. Floating seal group Floating seal group of our idler has super seal performance under bad working conditions like being muddy or steamy etc.. it is applicable for the condition of low speed and heavy load. And it is anti-friction and can be auto-compensated after wearing. 4. Lubrication oil Lubrication oil of our frant idler assy is selected carefully. It can lubricate shaft and bushing well to lower the wearing utmostly. And it can cool the roller perfectly. Those maximize the inner structure life. |
Stucture

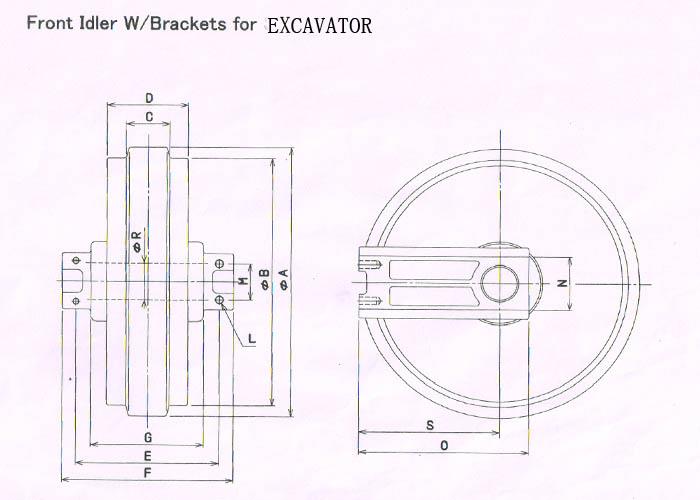

Sizes
Attentions while assembling the rollers
1. Before assembling rollers,smooth the sharp part of sapre parts and do the deburring,clean the inner holes of the roller body and oil seal etc..
2. Do not break and scratch any part of the sealing parts.
3. Do not oil and distort the rubber floating seal ring during assembling the rollers.
4. A small amount of oil should be covered on the contacting surface while fitting the floating seal group.
5. After finishing the assembling process,fill clean extreme-pressure vehicle gear oil to take 80 percent of the inner cavity of roller body and do the running test then confirm no leakage after 4 hours.
| POCLAIN-CASE POCLAIN V1642385 IDLER | DOOSAN 270-00037B IDLER |
| POCLAIN-CASE POCLAIN ZKI1942385 IDLER | DAEWOO 270-00059C IDLER |
| ITM P3222400M00 IDLER | DAEWOO 270-00049B IDLER |
| POCLAIN-CASE POCLAIN L1042347 IDLER | DAEWOO 270-00049C IDLER |
| POCLAIN-CASE POCLAIN ZKI1042347 IDLER | DOOSAN 200102-00001A IDLER |
| ITM P32304A0M00 IDLER | DOOSAN 2270-9405E IDLER |
| POCLAIN-CASE POCLAIN M0942344 IDLER | DOOSAN 2270-9405G IDLER |
| POCLAIN-CASE POCLAIN Q0142384 IDLER | DOOSAN 2270-9405H IDLER |
| ITM P3262400M00 IDLER | DOOSAN 200102-00012 IDLER |
| POCLAIN-CASE POCLAIN H0842382 IDLER | DOOSAN 270-00015B IDLER |
| ITM P3260400M00 IDLER | DOOSAN 2270-6098B IDLER |
| POCLAIN-CASE POCLAIN X0842304 IDLER | DOOSAN 2270-1028 IDLER |
| ITM P32074A0M00 IDLER | DOOSAN 2270-9009C IDLER |
| POCLAIN-CASE POCLAIN A1042314 IDLER | DOOSAN 200102-00052 IDLER |
| POCLAIN-CASE POCLAIN ZKI1042314 IDLER | HYUNDAI 81E7-01030 IDLER |
| BERCO LH485 IDLER | HYUNDAI 81EH-10050 IDLER |
| BERCO LH65A IDLER | HYUNDAI 81E8-2004 IDLER |
| DRESSER-FURUKAWA 3150450R92 IDLER | HYUNDAI 81EH-20070 IDLER |
| ITM P1405400M00 IDLER | HYUNDAI 81E9-20040 IDLER |
| JCB 201/69300 IDLER | HYUNDAI 81E7-01030BG IDLER |
| LIEBHERR 5000125 IDLER | HYUNDAI 81E7-01030S IDLER |
| LIEBHERR 5002361 IDLER | HYUNDAI 81E7-01031BG IDLER |
| LIEBHERR 5006095 IDLER | HYUNDAI 81E7-01031GG IDLER |
| LIEBHERR 5600215 IDLER | HYUNDAI 81QB-13010 IDLER |
| LIEBHERR 5601564 IDLER | HYUNDAI 81QB-13011 IDLER |
| BERCO LH1138 IDLER | HYUNDAI 81QB-13011BG IDLER |
| BERCO LH1447 IDLER | HYUNDAI 81QA-13010 IDLER |
| ITM PV954400M00 IDLER | HYUNDAI 81QA-13011 IDLER |
| LIEBHERR 5605760 IDLER | HYUNDAI 81EH-20070S IDLER |
| LIEBHERR 5608538 IDLER | HYUNDAI 81EH-20071BG IDLER |
| LIEBHERR 5614619 IDLER | HYUNDAI 81EH-20071GG IDLER |
| ITM P14034A0M00 IDLER | HYUNDAI 81N8-13010BG IDLER |
| BERCO LH1134 IDLER | HYUNDAI 81N8-13010GG IDLER |
| ITM PV9124C0N00 IDLER | HYUNDAI 81N8-13010S IDLER |
| LIEBHERR 10004549 IDLER | HYUNDAI 81N8-13011BG IDLER |
| LIEBHERR 5615509 IDLER | HYUNDAI 81N8-13011GG IDLER |
| BERCO LH1135 IDLER | HYUNDAI 81N8-13012BG IDLER |
| ITM PV9124D0N00 IDLER | HYUNDAI 81N8-13012G9 IDLER |
| LIEBHERR 10004544 IDLER | HYUNDAI 81N8-13012GG IDLER |
| LIEBHERR 5614992 IDLER | HYUNDAI 81N8-13010 IDLER |
| BERCO LH673 IDLER | HYUNDAI 81Q6-13030 IDLER |
| ITM P4942400M00 IDLER | HYUNDAI 81Q6-13031 IDLER |
| LIEBHERR 5604043 IDLER | HYUNDAI 81N6-13010BG IDLER |
| LIEBHERR 5605391 IDLER | HYUNDAI 81N6-13010GG IDLER |
| ITM P4985400M00 IDLER | HYUNDAI 81N6-13011BG IDLER |
| LIEBHERR 5002343 IDLER | HYUNDAI 81N6-13011G9 IDLER |
| LIEBHERR 5007674 IDLER | HYUNDAI 81N6-13011GG IDLER |
| LIEBHERR 5601881 IDLER | HYUNDAI 81N6-13010 IDLER |
| BERCO CR2655 IDLER | BERCO SI993 IDLER |
| ITM P01044F0M00 IDLER | BERCO ID2687 IDLER |
| LIEBHERR 5003948 IDLER | UX102E2E IDLER |
| BERCO CR3189 IDLER | UX084W0E IDLER |
| BERCO LH285 IDLER | UX028Z2E – IDLER |
| ITM P01060C0N00 IDLER | HITACHI 9306002 IDLER |
| LIEBHERR 5000440 IDLER | VOLVO 14589914 IDLER |
| LIEBHERR 5800068 IDLER | VOLVO 14571720 IDLER |
| PRIESTMAN 32880938C IDLER | VOLVO 14533152 IDLER |
| BERCO CR1833 IDLER | VOE14520150 IDLER |
| BERCO CR1833A IDLER | VOE14530808 IDLER |
| BERCO CR3663 IDLER | VOLVO 14510972 IDLER |
| ITM P01060G0N00 IDLER | VOE14542009 IDLER |
| JOHN DEERE AT64417 IDLER | UX101E1E IDLER |
| LIEBHERR 5003814 IDLER | VOE14533152 IDLER |
| BERCO LH286 IDLER | BERCO CR5125 IDLER |
| ITM PZ1080O0N00 IDLER | BERCO CA935 IDLER |
| LIEBHERR 5002731 IDLER | BERCO CR4587B IDLER |
| LIEBHERR 5800081 IDLER | BERCO CR5129 IDLER |
| BERCO CR1228 IDLER | BERCO FT2410 IDLER |
| BERCO CR1228B IDLER | BERCO HT675 IDLER |
| ITM P01080D0N00 IDLER | BERCO KM2224 IDLER |
| LIEBHERR 5800593 IDLER | BERCO KM4023 IDLER |
| BERCO LH1494 IDLER | BERCO KM4456 IDLER |
| CNH-FIAT NEW HOLLAND 76066465 IDLER | BERCO LK144 IDLER |
| JOHN DEERE AT276964 IDLER | CASE 152574A1 IDLER |
| LIEBHERR 5801608 IDLER | CASE 160424A1 IDLER |
| LIEBHERR 5802209 IDLER | CASE 166099A1 IDLER |
| BERCO LH1139 IDLER | ITM PX616400N00 IDLER |
| ITM PV9744B0M00 IDLER | JCB JRA0214YA IDLER |
| LIEBHERR 10004548 IDLER | SUMITOMO KRA1198 IDLER |
| LIEBHERR 5608122 IDLER | SUMITOMO KRA1198ZC IDLER |
| LIEBHERR 749056514 IDLER | SUMITOMO KRA1767 IDLER |
| YANMAR 772460-37100 IDLER | SUMITOMO KRA1767C IDLER |
| FARIT KB5158 IDLER | SUMITOMO KRA1767Z IDLER |
| BERCO FT1489A IDLER | CASE KRA14070 IDLER |
| CNH-FIAT NEW HOLLAND 76013122 IDLER | CASE KTA1268 IDLER |
| CNH-FIAT NEW HOLLAND 79021317 IDLER | DOOSAN K1011790 IDLER |
| CNH-FIAT NEW HOLLAND 79022523 IDLER | DOOSAN K1004481A IDLER |
| ITM P0410400M00L IDLER | DOOSAN K1004481B IDLER |
| BERCO FT1482A IDLER | DOOSAN 270-00059A IDLER |
| CNH-FIAT NEW HOLLAND 76013121 IDLER | DOOSAN 270-00059B IDLER |
| CNH-FIAT NEW HOLLAND 79021318 IDLER | UX070C6F IDLER |
| CNH-FIAT NEW HOLLAND 79022522 IDLER | UX084K5E IDLER |
| ITM P0410400M00R IDLER | UX095C5F IDLER |
| BERCO KM3442 IDLER | UX095C6F IDLER |
| KOMATSU 195-30-01030 IDLER | UX101K0E IDLER |
| BERCO KM1283 IDLER | UX101K5E IDLER |
| KOMATSU 195-30-01130 IDLER | UX070E8E IDLER |
| KOMATSU 195-30-01430 IDLER | UX076F0E IDLER |
| DOOSAN 270-00049A IDLER | UX084B0E IDLER |
| DOOSAN 270-00063A IDLER | UX084H2E IDLER |
Manufacturers’ names, numbers, symbols and descriptions are used for reference purposes only and it is not implied that any part listed is the product of the manufacturers.
Advantages
1. Own big and clean workshop, our products are identified from the standard items on the market.
2. The system of warehouse realized the standard and intelligent management, raised the work efficiency of the enterprise.
3. The quality control is always the object of pursuit by enterprises, and the control to the process quality of workshop-oriented products is the key of quality control for enterprises.
4. One shot harden, professional staffs and advanced technology and equipment prove the technological head start of our company enterprises.We take pride in the quality of our products cause of the excellence of its heat treatmentprocesses and our experimental basis of mining, adding the high quality floating seals and bearings, which lead our company to produce heavy duty type and much more durable products.
5. During these year , we cooperate and establish long-term business relationship with customers from Europe, USA/Canada, South America, South Africa, Middle East. on a daily basis and even enjoy seeing our product shipped to far corners of the world.

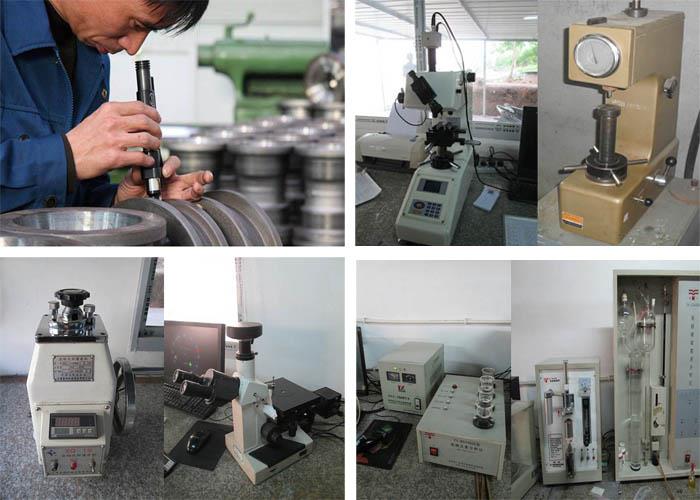

Our quality procedures
1. When raw material come inside our factory,we need to test the material composition first.
2. We need to analyze the composition of the first furnace of the steel liquid every day.
3. After several pcs of parts are heattreated, we need to check the hardness before all to be done to guarantee the hardness.
4. Our inspectors will check the sizes when parts are being machined and parts are being assembled.
FAQ
1. How do you offer guarantee?
If parts are broken due to manufacturing problem, we will deduct the value for next order amount or offer you brand new one to replce.
2. Could you make customer logo?
Yes,we can make customer logos if it reach the moq for customer logo order.
3. If we don’t have drawings, could we develop a new item?
Yes, you can offer us the main dimension. Then we can compare with our ready products and make a drawing for your checking.
4. Could we be your exclusive dealer?
Yes,our policy is that we will not let our customer to compete at the same place.
We have been committed to offering easy, time-saving and money-saving one-stop purchasing service of consumer for Front Idler for Sumitomo Excavator Sh200 Undercarriage Spare Parts. We treat every project with enthusiasm and are committed to reaching the best solution. We takes the quality and sincerity to clients as our priority, it is our hornor that customers from all over the world come to visit us. And customized orders are acceptable.
