Product Introduction
Front Idler D6H
Production introduction
The structure principle of idler is used to support the track and guide the track winding. The roller flange of the idler roller clamps the outer edge of the track chain rail joint to prevent the lateral shedding. The track is tightened by the tension buffer device connected with the wheel flange to alleviate the impact from the ground to the frame.
We offer a wide range of idler roller group for bulldozer for the most popular models.our idler roller groups are engineered with nodular iron and casting steel which is through a proper heat treatment allowing durability and impact. Our bulldozer idler roller group are highly praised in the market as a product with impact resistance and a long life
Product details of Front idler r80-7:
| SPECIFICATIONS FOR eXCAVATOR IDLER | ||
| Structure | wheel body | 50Mn |
| side cover | QT500-7 | |
| shaft | 45# | |
| ring float | GLKBTCr16Mo2NiCu | |
| O ring | rubber | |
| Bimetal sleeve | CuPb10Sn10 | |
| Hexagon socket bolt | JB/T1000-1977 | |
| lubricating oil | 40# | |
| The main parameters | Model name | D6H |
| Color | Black or Yellow | |
| Surface Hardness | HRC48-56,deepth:4mm-10mm | |
| Technique | Forging&Casting | |
| Warranty time | 6months | |
| Certification | ISO9001-9002 | |
| Delivery Time | Within 30 days after contract established | |

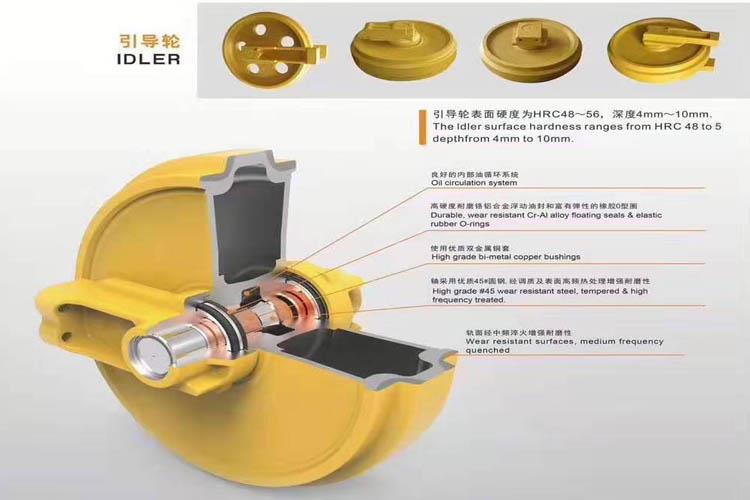

Structure of front idler D6H:
Machining of idler roller D6H:
Painting of idler group D6H:
Advantages of idler assy D6H:
1. Cost saving service life
The heavy profiles of idler rims are carefully heat treated in depth for extra service life.
2. Floating seal group
Floating seal group of our front idler group has super seal performance under bad working conditions like being muddy or steamy etc.. it is applicable for the condition of low speed and heavy load. And it is anti-friction and can be auto-compensated after wearing.
3. Lubrication oil
Lubrication oil of our frant idler assy is selected carefully. It can lubricate shaft and bushing well to lower the wearing utmostly. And it can cool the roller perfectly. Those maximize the inner structure life.
Model of idler assy:
| BERCO LH75B GUIDE WHEEL | BERCO FT2957 GUIDE WHEEL |
| BERCO VO18 GUIDE WHEEL | FIAT-HITACHI 1930837 GUIDE WHEEL |
| BERCO VO21 GUIDE WHEEL | ITM PY4064E0N00 GUIDE WHEEL |
| DRESSER-FURUKAWA 1254572H91 GUIDE WHEEL | VOLVO 19302768 GUIDE WHEEL |
| FAI 820030001 GUIDE WHEEL | BERCO FT2992 GUIDE WHEEL |
| ITM P5020400M00 GUIDE WHEEL | FIAT-HITACHI 71401043 GUIDE WHEEL |
| LIEBHERR 5603447 GUIDE WHEEL | FIAT-HITACHI 76501400 GUIDE WHEEL |
| LIEBHERR 5603477 GUIDE WHEEL | VOLVO 11700056 GUIDE WHEEL |
| RICHIER 508587912 GUIDE WHEEL | BERCO BD92 GUIDE WHEEL |
| SAMSUNG-H.I. 1081-00640 GUIDE WHEEL | BERCO BD92A GUIDE WHEEL |
| SAMSUNG-H.I. 1081-03910 GUIDE WHEEL | ITM P14034D0M00 GUIDE WHEEL |
| VOLVO 1081-03910 GUIDE WHEEL | DAEWOO 2270-1052 GUIDE WHEEL |
| BAUER 262216 GUIDE WHEEL | DAEWOO 2270-1084 GUIDE WHEEL |
| BROYT 7361297 GUIDE WHEEL | DAEWOO 2270-1084B GUIDE WHEEL |
| ITM PS342400M00 GUIDE WHEEL | DAEWOO 2270-1064 GUIDE WHEEL |
| LIEBHERR 5611691 GUIDE WHEEL | DAEWOO 2270-1108A GUIDE WHEEL |
| SENNEBOGEN 3424026108 GUIDE WHEEL | BANTAM-KOEHRING 422V0080 GUIDE WHEEL |
| VOLVO 14024008 GUIDE WHEEL | BERCO KO156 GUIDE WHEEL |
| ITM P2605400M00 GUIDE WHEEL | BERCO KO18 GUIDE WHEEL |
| JCB 331/20054 GUIDE WHEEL | BERCO KO76 GUIDE WHEEL |
| ITM P32064A0M00 GUIDE WHEEL | DOOSAN 2270-9405 GUIDE WHEEL |
| LIEBHERR 5006268 GUIDE WHEEL | ITM P4746400M00 GUIDE WHEEL |
| LIEBHERR 5006951 GUIDE WHEEL | SUMITOMO KNA1265 GUIDE WHEEL |
| POCLAIN-CASE POCLAIN D2442373 GUIDE WHEEL | CASE-SUMITOMO KRA0946 GUIDE WHEEL |
| POCLAIN-CASE POCLAIN G2242322 GUIDE WHEEL | ITM PV128400M00 GUIDE WHEEL |
| POCLAIN-CASE POCLAIN Q1842314 GUIDE WHEEL | SUMITOMO-LINKBELT JRA0214Y-A GUIDE WHEEL |
| POCLAIN-CASE POCLAIN ZKI2242322 GUIDE WHEEL | SUMITOMO KSA1064 GUIDE WHEEL |
| VOLVO 14214909 GUIDE WHEEL | BENATI 2201183 GUIDE WHEEL |
| BERCO FT2747 GUIDE WHEEL | BERCO AT104 GUIDE WHEEL |
| BERCO SI497 GUIDE WHEEL | BERCO AT104A GUIDE WHEEL |
| FIAT-HITACHI 76501399 GUIDE WHEEL | DRESSER-FURUKAWA 3150009R93 GUIDE WHEEL |
| ITM PY4044F0M00 GUIDE WHEEL | FAI 820010018 GUIDE WHEEL |
| VOLVO 1081-04000 GUIDE WHEEL | HANOMAG 3227466M91 GUIDE WHEEL |
| BERCO VO3 GUIDE WHEEL | INGERSOLL RAND 57695751 GUIDE WHEEL |
| ITM PS922400M00 GUIDE WHEEL | ITM P2190400M00 GUIDE WHEEL |
| VOLVO 1181-00030 GUIDE WHEEL | JCB 208/34200 GUIDE WHEEL |
| VOLVO 14520150 GUIDE WHEEL | JCB 209/84700 GUIDE WHEEL |
| VOLVO 14522945 GUIDE WHEEL | LIEBHERR 508587914 GUIDE WHEEL |
| EDER 609464 GUIDE WHEEL | LIEBHERR 5209148 GUIDE WHEEL |
| ITM PU013400M00 GUIDE WHEEL | RICHIER 508587914 GUIDE WHEEL |
| LARSEN & TOUBRO T20342321 GUIDE WHEEL | SIMIT 45481186 GUIDE WHEEL |
| SENNEBOGEN 006719 GUIDE WHEEL | SIMIT 71314449 GUIDE WHEEL |
| VOLVO 609534 GUIDE WHEEL | BENATI 2201341 GUIDE WHEEL |
| ITM PY4054Q0Y00 GUIDE WHEEL | BERCO VA539B GUIDE WHEEL |
| ITM P9329400M00 GUIDE WHEEL | INGERSOLL RAND 57695611 GUIDE WHEEL |
| VOLVO 14520821 GUIDE WHEEL | ITM P2519200M00 GUIDE WHEEL |
| VOLVO P14520821 GUIDE WHEEL | JCB 210/79700 GUIDE WHEEL |
| VOLVO P14520821-A GUIDE WHEEL | JCB 214/69200 GUIDE WHEEL |
| ITM PY4064A0M00 GUIDE WHEEL | JOHN DEERE-CAMECO 0251352269 GUIDE WHEEL |
| ITM PS206400N00 GUIDE WHEEL | JOHN DEERE-CAMECO NW10020 GUIDE WHEEL |
| VOLVO 11700924 GUIDE WHEEL | O.M. (CRUSHER) 274019200001 GUIDE WHEEL |
| VOLVO 11700924-1 GUIDE WHEEL | ATLAS-TEREX 1314432 GUIDE WHEEL |
| BERCO VO22 GUIDE WHEEL | BERCO ID609 GUIDE WHEEL |
| ITM P9346401M00 GUIDE WHEEL | BERCO LH134 GUIDE WHEEL |
| VOLVO 1081-02222 GUIDE WHEEL | BERCO LH492 GUIDE WHEEL |
| VOLVO 14510975 GUIDE WHEEL | BROYT 7361205 GUIDE WHEEL |
| VOLVO 14520609 GUIDE WHEEL | FUCHS 3601161053 GUIDE WHEEL |
| VOLVO P14520609 GUIDE WHEEL | INGERSOLL RAND 56763916 GUIDE WHEEL |
| BERCO LH544 GUIDE WHEEL | ITM P4911400M00 GUIDE WHEEL |
| DEMAG 41408940 GUIDE WHEEL | JOHN DEERE 21X68531A GUIDE WHEEL |
| DEMAG 950371 GUIDE WHEEL | JOHN DEERE AT47057 GUIDE WHEEL |
| ITM PV974400M00 GUIDE WHEEL | LIEBHERR 5002358 GUIDE WHEEL |
| LIEBHERR 5000127 GUIDE WHEEL | LIEBHERR 5209293 GUIDE WHEEL |
| LIEBHERR 5601876 GUIDE WHEEL | LIEBHERR 5602249 GUIDE WHEEL |
| LIEBHERR 7365656 GUIDE WHEEL | LIEBHERR 5617148 GUIDE WHEEL |
| LIEBHERR 7490581 GUIDE WHEEL | POCLAIN-CASE POCLAIN L2868378 GUIDE WHEEL |
| LIEBHERR 749058114 GUIDE WHEEL | BERCO ID892 GUIDE WHEEL |
| VOLVO 14016646 GUIDE WHEEL | BERCO ID892A GUIDE WHEEL |
| BERCO KB39 GUIDE WHEEL | ITM P15694E0M00 GUIDE WHEEL |
| ITM P1612400N00 GUIDE WHEEL | JOHN DEERE AT152096 GUIDE WHEEL |
| KOBELCO 24100N6369F1 GUIDE WHEEL | VOLVO 11700045 GUIDE WHEEL |
| KOBELCO 24100N6369F2 GUIDE WHEEL | ITM P15624A1M00 GUIDE WHEEL |
| KOBELCO 24100N6504F1 GUIDE WHEEL | ITM P32094A0M00 GUIDE WHEEL |
| ITM PY6224A0N00 GUIDE WHEEL | POCLAIN-CASE POCLAIN C2242341 GUIDE WHEEL |
| KOBELCO 24100J11697F1 GUIDE WHEEL | POCLAIN-CASE POCLAIN G2442376 GUIDE WHEEL |
| KOBELCO 24100J11697F2 GUIDE WHEEL | POCLAIN-CASE POCLAIN W1642335 GUIDE WHEEL |
| KOBELCO 24100J12445F1 GUIDE WHEEL | POCLAIN-CASE POCLAIN ZKI2242341 GUIDE WHEEL |
| ITM P1622400M00 GUIDE WHEEL | BERCO VA961 GUIDE WHEEL |
| KOBELCO LQ52D00003F0 GUIDE WHEEL | ITM P2116400M00 GUIDE WHEEL |
| KOBELCO LQ52DU0002F1 GUIDE WHEEL | SIMIT 71318805 GUIDE WHEEL |
| ITM P16274A0M00 GUIDE WHEEL | ITM PS921400M00 GUIDE WHEEL |
| KOBELCO LB52D00002F1 GUIDE WHEEL | SAMSUNG-H.I. 1081-03790 GUIDE WHEEL |
| KOBELCO LB52D00002F2 GUIDE WHEEL | ITM PW2114D0N00 GUIDE WHEEL |
| KOBELCO LB52D00002F3 GUIDE WHEEL | POCLAIN-CASE POCLAIN P2042321 GUIDE WHEEL |
| KOBELCO XLB52D00002F1 GUIDE WHEEL | POCLAIN-CASE POCLAIN P2042321P GUIDE WHEEL |
| ITM PY406400M00 GUIDE WHEEL | POCLAIN-CASE POCLAIN ZKI2042321 GUIDE WHEEL |
| ITM PY630400M00 GUIDE WHEEL | ITM P32164A0M00 GUIDE WHEEL |
| KOBELCO 24100N3099F4 GUIDE WHEEL | POCLAIN-CASE POCLAIN L1042324 GUIDE WHEEL |
| KOBELCO 24100N3099F5 GUIDE WHEEL | POCLAIN-CASE POCLAIN ZKI1042324 GUIDE WHEEL |
| KOBELCO LC52DU0001F1 GUIDE WHEEL | ITM P32114A0M00 GUIDE WHEEL |
| ITM PY407400M00 GUIDE WHEEL | POCLAIN-CASE POCLAIN K2242371 GUIDE WHEEL |
| KOBELCO 24100J4658F4 GUIDE WHEEL | POCLAIN-CASE POCLAIN M1942384 GUIDE WHEEL |
| KOBELCO LS52DU0001F1 GUIDE WHEEL | POCLAIN-CASE POCLAIN P1942384M GUIDE WHEEL |
| BERCO FT2775 GUIDE WHEEL | POCLAIN-CASE POCLAIN P2242371K GUIDE WHEEL |
| BERCO SI501 GUIDE WHEEL | POCLAIN-CASE POCLAIN ZKI2242371 GUIDE WHEEL |
| FIAT-HITACHI 1930838 GUIDE WHEEL | ITM P32204B0M00 GUIDE WHEEL |
| BERCO FT2762 GUIDE WHEEL | POCLAIN-CASE POCLAIN F2442375 GUIDE WHEEL |
| BERCO SI499 GUIDE WHEEL | POCLAIN-CASE POCLAIN N1942385 GUIDE WHEEL |
| FIAT-HITACHI 1930839 GUIDE WHEEL | POCLAIN-CASE POCLAIN P1942385N GUIDE WHEEL |
| ITM PX1154A0N00 GUIDE WHEEL | POCLAIN-CASE POCLAIN V1642334 GUIDE WHEEL |
FAQ
1. What is the percent of your parts for overseas market?
70percent of our parts are for overseas market.
2. Is there any guarantee of your parts?
There are 6 months guarantee time for excacavar parts under normal working conditions and 3months guaranteet tiem for bulldozer parts under normal working conditions.
3. How do you offer guarantee?
If parts are broken due to manufacturing problem, we will deduct the value for next order amount or offer you brand new one to replce.
